Harnessing Machine Learning for Predictive Maintenance in Slurry Pumps: An Approach to Pattern Identification

The mining industry relies heavily on the efficient operation of slurry pumps, crucial components that handle abrasive slurries in mineral processing. To enhance reliability and minimize downtime, the integration of Machine Learning (ML) in a Predictive Maintenance (PdM) workflow for slurry pumps proves invaluable. This article delves into the application of ML techniques, with a focus on Principal Component Analysis (PCA) and Classification Tools using discreet labels in the context of slurry pump condition monitoring.

Machine Learning for Predictive Maintenance in Slurry Pumps

Enhance slurry pump reliability with Machine Learning. Discover how PCA, classification tools, and predictive maintenance improve asset performance.

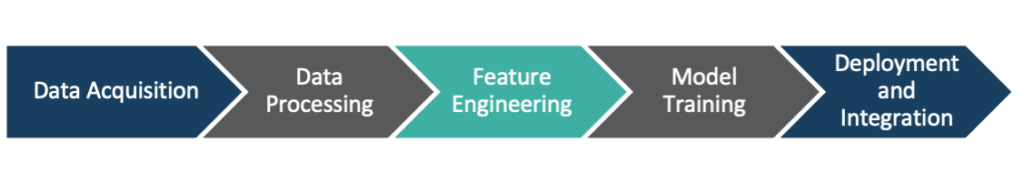

Predictive Maintenance Workflow

Principal Component Analysis (PCA)

PCA aids in dimensionality reduction by extracting the most significant features from the sensor and simulation data. This technique enhances the model’s efficiency by focusing on the principal components that contribute the most to the variability in the dataset, allowing for a streamlined and effective representation of the pump’s operational behaviour within the overall Asset Performance Strategy.

This article delves into the technical implications of PCA, exploring its applications in feature reduction and subsequent utilisation in conjunction with classification tools. Tools like scikit-learn (sklearn) and seaborn are spotlighted for their pivotal roles in implementing these techniques.

Consider a scenario where sensor data, including acceleration, temperature, torque, speed, pressure, and feed rate, is collected. PCA allows us to transform this high-dimensional data into a lower-dimensional space, retaining the essential features and highlighting the dominant patterns.

Figure 1 show an example of our dataset, 8 variables collected over time. It would be impossible to analyze all these variables independently and expect an efficient and accurate result.

Figure 1 – Pump Sensor Data, 8 measured variables

Classification Tools

Classification tools play a pivotal role in predictive maintenance by categorizing data into distinct classes or conditions. Employing algorithms such as Support Vector Machines (SVM) or Random Forests facilitates the creation of robust models for predicting equipment conditions based on the reduced feature set obtained from PCA, ultimately enhancing Asset Performance.

Figure 2 – Classification example of Measured Variables vs Motor Current

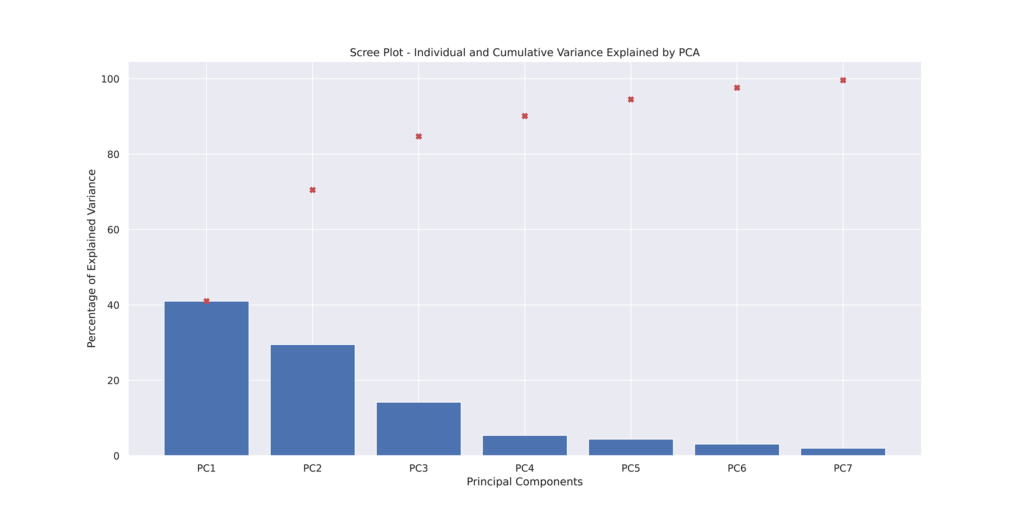

The Scree Plot shown in Figure 3, presents the results of the principal component analysis.

Figure 3 – Principal Components PC1 vs PC2

Data Visualization with Seaborn

Seaborn, a statistical data visualization library built on top of Matplotlib, enhances the interpretability of results. Scatter plots with seaborn can be instrumental in visually discerning patterns or clusters within the reduced feature space, aiding in both exploratory analysis and model validation.

In this example, the scatter plot using grouping displays the two quantitative variables (PC1 and PC2) and one categorical variables (discreet labels) for Conditions: “NORMAL”, “WARNING” and “ALARM”, facilitating the understanding of how this pump degrades over time.

Conclusion

The integration of Machine Learning techniques, particularly PCA, into the Predictive Maintenance workflow for slurry pumps in the mining industry enhances the ability to monitor and predict equipment conditions. By leveraging these advanced methodologies, mining operations can achieve proactive maintenance strategies, minimize downtime, and optimise the asset performance strategy of critical slurry pump systems, contributing to increased operational efficiency and reduced maintenance costs.

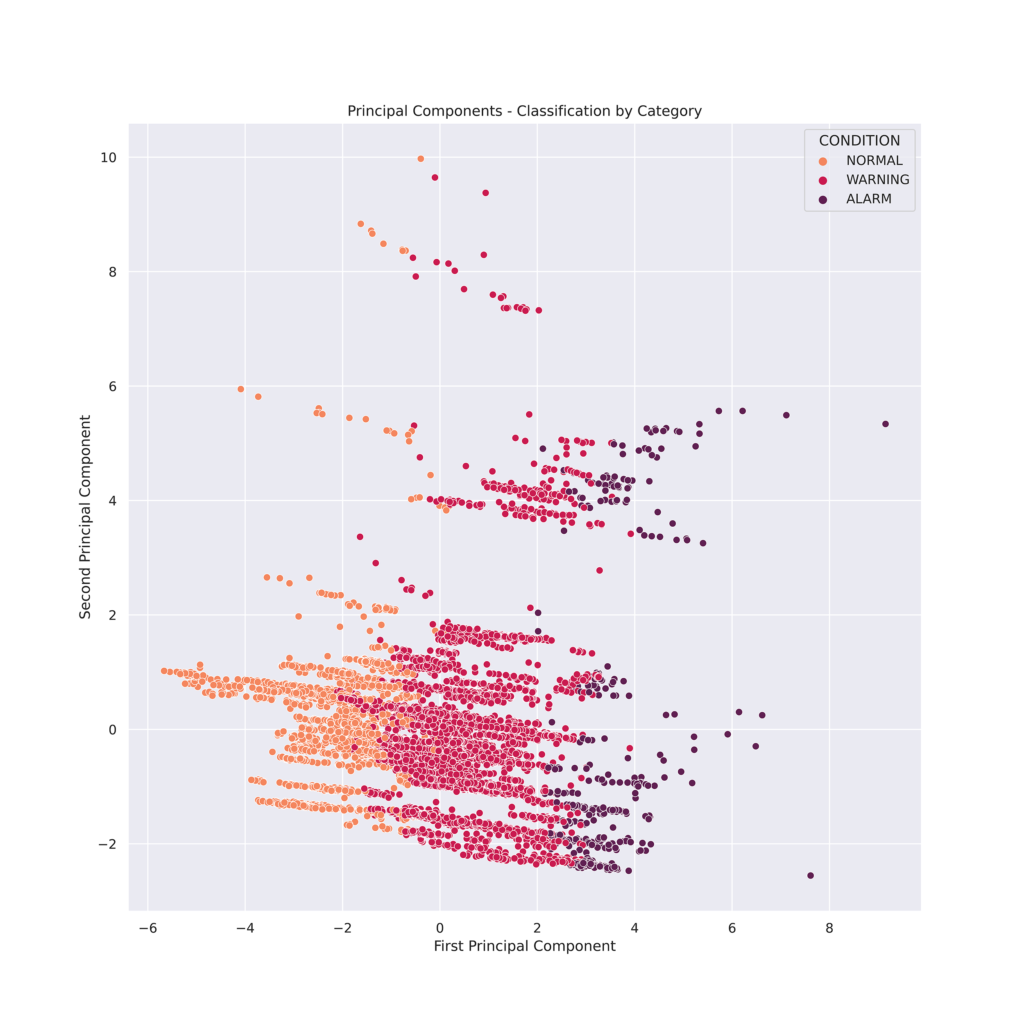

Figure 4 – Classification of PCs based of categorical variable

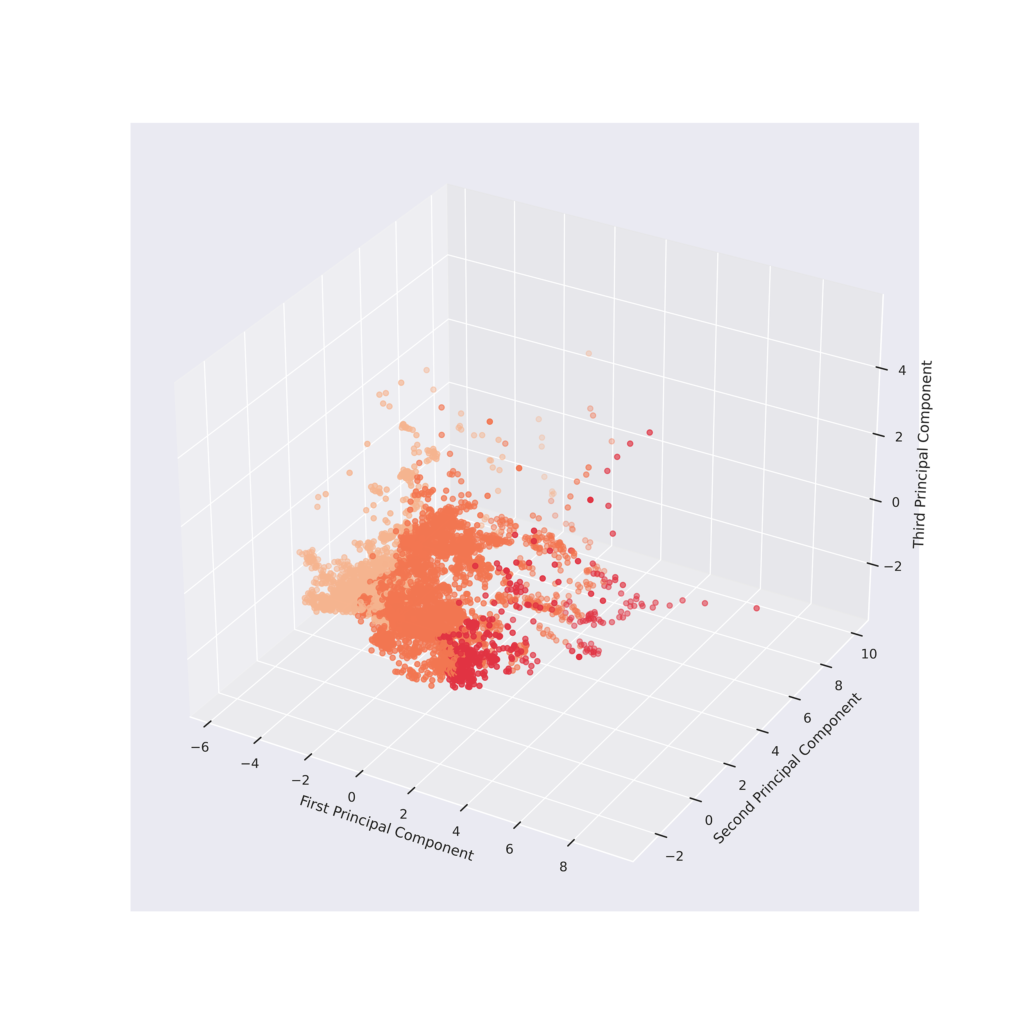

Figure 5 – Classification of PCs 1, 2 and 3, by Category in 3-Dimensional analysis

Keywords: Machine Learning, Asset Performance Strategy, Predictive Maintenance, Principal Component Analysis, Feature Extraction, Supervised Learning, Condition Monitoring, Predictive Modelling, Python Programming, Scikit-learn, Seaborn
